Punching
tool sets |
The punching
tool sets are professionally designed. Every
tool set listed below consists of a hardened
and ground punch, a hardened and ground
die and also a stripper pad matched to the
shape of the punch. The stripper pad is
spring mounted, similar to punching tools
on large machines. Round, square and rectangular
punching tools are available. |
|
|
|
P200 |
P320 |
|
Item Nr. 115110 |
Ø 3
mm |
|
|
|
|
Item Nr. 115120 |
Ø 4
mm |
|
|
|
|
Item Nr. 115130 |
Ø 5
mm |
|
|
|
|
Item Nr. 115140 |
Ø 6
mm |
|
|
|
|
Item Nr. 115150 |
Ø 8
mm |
|
|
|
|
Item Nr. 115160 |
Ø 10mm |
|
|
|
|
Item Nr. 115210 |
4 x 4 mm |
|
|
|
|
Item Nr. 115220 |
6 x 6 mm |
|
|
|
|
Item Nr. 115230 |
8 x 8 mm |
|
|
|
|
Item Nr. 115240 |
10 x 10 mm |
|
|
|
|
Item Nr. 115250 |
12 x 12 mm |
|
|
|
|
Item Nr. 115260 |
4 x 20 mm |
|
|
|
|
Notching Tool |
The notching
tool consists of a hardened punch and a
hardened die with integrated punch guide.
It has been designed so that corners of
any dimension from 1x1 to 70x70mm (up to
100x100mm with Profiform 320) can be notched
out, as well as any sizes between. Dimensions
up to 12x12mm can be notched out in a single
operation, larger ones in a number of steps. |
|
|
|
P200 |
P320 |
|
Item Nr. 115270 |
Notching Tool |
|
|
|
|
Tool holder set (mounting
set) and fine adjustment with stops for
punching and notching tools |
| The tool holder
set accepts all punching tools. The stops
allow parts to be positioned in the x and
y axes, which is particularly useful when
manufacturing several identical parts. The
mounting set consists of a mount for die
plates with stops and a upper mount for
punches and blank holder (stripper pad).
The optional fine adjustment allows finest
corrections to the depth stop, thanks to
an adjusting screw.
 Operating
manual d/e/f (PDF 36kB) |
|
|
|
P200 |
P320 |
|
Item Nr. 115100 |
Tool holder
set |
|
|
|
|
Item Nr. 115102 |
Fine
adjustment device |
|
|
|
Tools for fabricating
louvers and grooves |
Special tools
for fabricating louvers and grooves are
available as an additional feature for expanding
the possible uses of Profiform 200 and 320
sheet metal working machines. The special
tool holder PWH0030 Item Nr. 115300 is required
to use the louver and groove tools. The
special tool holder is also very useful
to use your «do it yourself tools»
on Profiform 200 or 320 machines.
Operating
manual d/e/f (PDF 32kB) |
|
|
|
P200 |
P320 |
|
Item Nr. 115300 |
Tool
Holder |
|
|
|
Item Nr. 115310 |
Vent-Slot
(34 x 1,5 x 3 mm) |
|
|
|
Item Nr. 115320 |
Vent-Slot
(34 x 2,5 x 5 mm) |
|
|
|
Item Nr. 115340 |
Groove
(34 x 1 x 1 mm) |
|
|
|

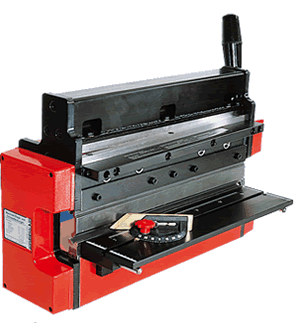

Universal table with
angular stop for Profiform 200 or 320 |
The universal
table is a versatile accessory that fulfils
the function of a third hand. It is fully
made of aluminium, which is anodised for
protection. For accurate work the table
is of invaluable help. The engraved metric
rules and angle grid avoid in many cases
the use of additional measuring equipment.
This table is, like many other Profiform
accessories, a multi purpose item.
When folding: as a table, which is exactly
level with the V-block.
When punching: as a table, which is exactly
level with the die.
When shearing: as a table which moves up
and down with the lower cutting blade, or
as an additional feature for Profiform 320
only to extend the rear built in machine
table to about twice its original size.
The adjustable angular stop can be used
in conjunction with the universal table
for all above-mentioned applications. The
necessary guiding groove is already machined
into the table.
|
|
|
|
P200 |
P320 |
|
Item Nr. 115550 |
Table |
|
|
|
Item Nr. 115560 |
Table |
|
|
|
Item Nr. 115570 |
Angular
stop for table |
|
|
|
Boxing tool set |
The boxing
tool set is used to completely fold sheet-metal
180°. Boxed constructions are used for
thin sheet-metal as a means of reinforcement
or wherever a sharp edge must be avoided.
The boxing tool set consists of three tools
each and have a functional length of 200mm
for the version for Profiform 200, and 320mm
for the version for Profiform 320.
Operating
manual d/e/f (PDF 48kB) |
|
|
|
P200 |
P320 |
|
Item Nr. 115600 |
Boxing tool
set |
|
|
|
|
|
Item Nr. 115700 |
Boxing tool
set |
|
|
|
|
Bending limitation |
The bending
limitation is an adjustable device which
allows any desired bending angle between
0° and 90° to be obtained. The stop
limits the penetrating depth of the bending
punch into the V-block. In the case of a
series of parts this accessory allows manufacturing
of an unlimited number of similar parts
with exactly the same bending angle by simply
moving the bending device every time to
the set stop.
The bending limitation is standard equipment
for Profiform 200 (Item Nr. 110000).
|
|
|
|
P200 |
P320 |
|
Item Nr. 115900 |
|
|
|
|
|
Cutter end stops |
The cutter
end stops are a great help when a series
of identical parts are manufactured. The
range of adjustment is variable from 0 to
95mm. The simple stop Item-Nr. 115400 is
to be used as one side depth stop on both
machine types. The Item-Nr. 115420 for Profiform
200 or the Item-Nr. 115432 for Profiform
320 are stops covering the full width of
the machines. They can be set for cutting
parallel parts as well as for cutting tapered
parts between 0°and15°.
Operating
manual d/e/f (PDF 35kB) |
|
|
|
P200 |
P320 |
|
Item Nr. 115400 |
Cutter
end stop, single side |
|
|
|
|
Item Nr. 115420 |
Cutter
end stop, full width |
|
|
|
Item Nr. 115432 |
Cutter
end stop, full width |
|
|
|
V-blocks and bending
tools |
The high grade,
profiled steel V-blocks and bending tools
are separately available for special applications.
These parts can be milled, filed and ground. |
|
|
|
P200 |
P320 |
|
Item Nr. 115001 |
Bending tools L = 10 mm |
|
|
|
|
Item Nr. 115002 |
Bending tools L = 15 mm |
|
|
|
Item Nr. 115003 |
Bending tools L = 20 mm |
|
|
|
Item Nr. 115004 |
Bending tools L = 40 mm |
|
|
|
Item Nr. 115008 |
Bending
tools L = 200 mm |
|
|
|
Item Nr. 115009 |
Bending
tools L = 320 mm |
|
|
|
Item Nr. 115019 |
Bending
tools
without radius L = 200 mm |
|
|
|
Item Nr. 115020 |
Bending
tools
without radius L = 320 mm |
|
|
|
Item Nr. 115014 |
Bending
tools
extra narrow (2mm) L = 200 mm |
|
|
|
Item Nr. 115015 |
Bending
tools
extra narrow (2mm) L = 320 mm |
|
|
|
Item Nr. 115010 |
V-blocks
L = 200 mm |
|
|
|
Item Nr. 115011 |
V-blocks
L = 320 mm |
|
|
|
Mounting plate |
For mounting
the P320 machine on a workbench or table
by means of standard C-clamps. Item consists
of mounting plate and screws, C-clamps are
not included. |
|
|
|
P200 |
P320 |
|
Item Nr. 115500 |
Mounting plate |
|
|
|
|
Accessory storage plate |
Get your punching
and bending tools nicely lined up! The new,
compact accessory storage plate made of
anodised aluminium allows to store Profiform
accessories on a small surface and well
ordered. |
|
|
|
P200 |
P320 |
|
Item Nr. 115511 |
Accessory storage
plate |
|
|
|
